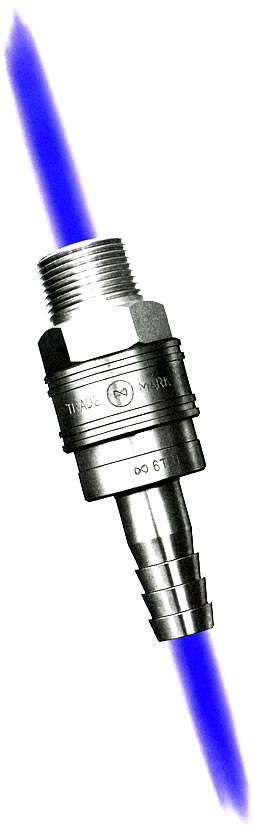

| TSP CUPLA |
■ Straight through valve-less construction.
■ Extremely low pressure loss.
■ For systems that don't require shut-off.
■ Many types for a wide variety of applications. |
| |
|
| |
|
|
| Features |
- Internal construction results in extremely low pressure loss.
- May be used with viscous fluid, particles or steam.
- Wide variety of types for many applications and work sites.
|
| Applications |
 |
Recommended fluids |
Applications |
| Brass |
Gasoline、fuel oil、
kerosene 、water |
Water piping, sea water
Hydraulic equipment, piping
Steam piping
Chemicals, chemical plants
High-pressure gas (N2,Freon,etc.) |
| Stainless steel |
Acid,alkali,salty water |
| Steel |
Operating oil |
|
| |
| Specifications |
Material |
Brass |
Stainless Steel (Blackened) |
Size |
1/8".1/4",
3/8",1/2" |
3/4",1" |
1 1/4",
1 1/2 |
2" |
1/8".1/4",
3/8",1/2" |
3/4",1" |
1 1/4",
1 1/2 |
2" |
Working pressure(kgf/cm2) |
50 |
30 |
20 |
15 |
75 |
45 |
30 |
20 |
Maximum pressure(kgf/cm2) |
75 |
45 |
30 |
23 |
100 |
65 |
40 |
30 |
Packing material and
operating temperature |
Rubber material |
Nitto symbol |
Operation
temperature |
Remarks |
Nitrile butadiene
rubber |
SG |
-20℃～+80℃ |
Standard
material |
Viton |
X-100 |
-20℃～+180℃ |
Optional |
Neoprene |
X-306 |
-20℃～+80℃ |
Ethylene
propylene |
E.P.T. |
-40℃～+150℃ |
|
| |
| Structure |
| When disconnected |
| Fluid flows out due to valveless construction. Use this type CUPLA with a system that doesn't require any shut-off. |
|
| When When connected |
| Valveless internal construction results in an extremely low pressure loss allowing fluids with a high viscosity to flow smoothly. |
|
| |
| Interchangeability |
- Different size sockets and plugs are not interchangeable.
- Sockets and plug of the same size are interchangeable irrespective of the type of connection.
|
| Precaution |
- Select packing material in accordance with the type and temperature of fluid.
- Dust, foreign matter and flaws may cause leakage.
- The larger the size, the lower the rated pressure. Check CUPLA size.
|
|
|
|
|
