| Dimensions and Weight Tables |
|
|
| |
|
 |
 |
| |
|
|
|
Model |
Applications |
Weight(g) |
Dimensions(mm) |
Lp |
C |
A |
￠Hp |
￠T |
￠B |
*K02PH |
For 1/4" hose |
17 |
50 |
15 |
29 |
12 |
8 |
5 |
*K03PH |
For 3/8" hose |
19 |
42 |
15 |
21 |
15 |
12 |
6 |
|
|
|
|
Model |
Applications |
Weight(g) |
Dimensions(mm) |
Ls |
￠D |
￠d |
N |
A |
C |
￠T |
￠B |
*K02SH |
For 1/4" hose |
52 |
67 |
21 |
18.5 |
18 |
30 |
29 |
8 |
6 |
K03SH |
For 3/8" hose |
60 |
59 |
21 |
18.5 |
18 |
30 |
21 |
12 |
7 |
|
| |
|
|
|
|
Model |
Applications |
Weight(g) |
Dimensions(mm) |
Lp |
Hp |
C |
A |
T |
￠B |
K01PM |
PT1/8" |
14 |
31 |
Hex.12 |
15 |
10 |
PT1/8" |
5 |
K02PM |
PT1/4" |
20 |
34 |
Hex.14 |
15 |
13 |
PT1/4" |
6 |
K02PM |
PT3/8" |
38 |
35 |
Hex.19 |
15 |
14 |
PT3/8" |
6 |
|
|
|
|
Model |
Applications |
Weight(g) |
Dimensions(mm) |
Ls |
￠D |
￠d |
N |
A |
C |
T |
￠B |
K02SM |
PT1/4" |
70 |
51 |
21 |
18.5 |
18 |
30 |
13 |
PT1/4" |
6 |
*K03SM |
PT3/8" |
82 |
51 |
21 |
18.5 |
18 |
30 |
13 |
PT3/8" |
6 |
|
| |
|
|
|
|
Model |
Applications |
Weight(g) |
Dimensions(mm) |
Lp |
Hp |
C |
A |
T |
￠B |
K01PF |
PT1/8" |
16 |
28 |
Hex.14 |
15 |
10 |
PT1/8" |
6 |
K02PF |
PT1/4" |
22 |
30.5 |
Hex.17 |
15 |
13 |
PT1/4" |
6 |
K02PF |
PT3/8" |
35 |
32 |
Hex.21 |
15 |
14 |
PT3/8" |
6 |
|
|
|
|
Model |
Applications |
Weight(g) |
Dimensions(mm) |
Ls |
￠D |
￠d |
N |
A |
C |
T |
Hs |
K02SF |
PT1/4" |
57 |
47.5 |
21 |
18.5 |
18 |
30 |
14.5 |
PT1/4" |
Hex.17 |
|
| |
|
|
|
|
Model |
Applications |
Weight(g) |
Dimensions(mm) |
Lp |
C |
Hp |
A |
T |
￠B |
K01PML |
PT1/8" |
43 |
33.5 |
15 |
30.5 |
10 |
PT1/8" |
5 |
K02PML |
PT1/4" |
53 |
33.5 |
15 |
33.5 |
13 |
PT1/4" |
6 |
K02PML |
PT3/8" |
71 |
33.5 |
15 |
33.5 |
14 |
PT3/8" |
6 |
|
|
|
|
Model |
Applications |
Weight(g) |
Dimensions(mm) |
Ls |
￠D |
￠d |
N |
A |
C |
￠T |
Hs |
*K02SHL |
For 1/4" hose |
79 |
52 |
21 |
18.5 |
18 |
30 |
21 |
8 |
41 |
K03SHL |
For 3/8" hose |
87 |
52 |
21 |
18.5 |
18 |
30 |
21 |
12 |
41 |
|
Note 1) Asterisked(*) CUPLA are only manufactured by order. Ask your NITTO representative about prices and delivery schedule.
Note 2) Some sockets do not have valve. They are identified by the character “T” prefixed to “S”, as in “K03TSH” |
| |
|
|
|
|
| Features |

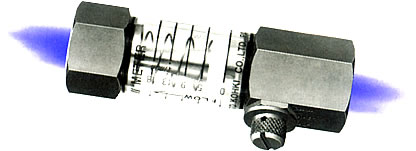

- Digital flow rate check of cooling water on the scale allows operator to accurately set cooling conditions.
- Built-in flow control valve allows molding conditions of each site to be set independently.
- Reproducibility of molding conditions shortens read time.
- Maintenance is extremely easy.
|
| Specifications |
Applicable fluid type |
Cooling water |
Applicable temperature |
+10℃～+60℃ |
Maximum flow rate |
19l/min (0～19l/min Adjustable) |
Body material |
Brass |
Scale tube |
Polycarbonate |
Thread size |
PT3/8" (female thread) |
|
|
|
|
|
|
