| SP-V CUPLA |

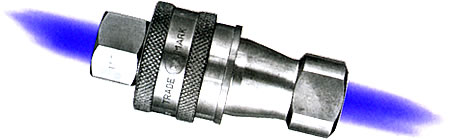

■ CUPLA valves(patd.) designed specifically for vacuum evacuation and freon charging.
■ External shape. dimensions and pressure tightness are the same as the SP,but an ultratight seal is used in the internal automatic shut-off valve mechanism which enables it to withstand the suction force of a vacuum.
■ Able to withstand a 10-3mmHg vacuum. Ideal for freon (R12,22) and refrigeration oil. |
| |
|
| |
 |
| Features |
- Valves in both the plug and socket prevent leakage of gas or oil upon disconnection.
- Highly accurate machining technology creates an extremely tight seal.
- Ball lock system allows free swiveling action of hose
|
| Specifications |
Material |
Brass(standard) |
Stainless Steel (order) |
Size |
1/4",3/8" |
1/2",3/4" |
1/4",3/8" |
1/2",3/4" |
Working pressure(kgf/cm2) |
50 |
30 |
75 |
45 |
Maximum pressure(kgf/cm2) |
75 |
45 |
100 |
65 |
Packing material and
operating temperature |
Rubber
material |
Nitto
symbol |
Operation temperature |
Remarks |
Neoprene |
X-306 |
-20℃～
+80℃ |
Select either
for order |
Viton |
X-100 |
-20℃～
+180℃ |
Appilcable fluid |
Neoprene |
Freon R12/22、helium, nitrogen,air |
Viton |
Freon R12, helium, nitrogen, hot air,
refrigeration oil |
Degree of vacuum |
When disconnected |
10-3mmHg |
When
connected |
10-3mmHg |
Type of connection |
Female thread for both socket and plug |
|
|
|
| Applications |
 |
Recommended fluid |
Applications |
| Brass |
Air
Freon (R12, R22)
Refrigeration oil
Helium
Nitrogen
Vacuum |
Vacuum evacuation
Freon gas
Refrigeration oil charging |
| Stainless steel |
|
| |
| Structure |
| When disconnected |
| The socket and plug valves seal instantly, automatically shutting off fluid flow to prevent leakage. |
|
| When When connected |
| The socket and plug valves push together, opening to permit free flow of fluid through CUPLA.An O-ring in the socket seals the plug surface preventing any leakage. |
|
| |
| Interchangeability |
- Different size sockets and plugs are not interchangeable.
- The SP-V (except for the 3SP-V) is interchangeable with the SP.
|
| Precaution |
- Dust, foreign matter and flaws may reduce vacuum resistance.
|
|
| |
|
|
| Dimensions and Weight Tables |
|
|
| |
|
 |
 |
| |
|
|
Model |
Applications |
Weight(g) |
Dimensions(mm) |
Brass |
Stainless steel |
Lp |
Hp |
C |
A |
T |
2P-V |
PT1/4" |
38 |
35 |
36 |
Hex.17 |
22 |
13 |
PT1/4" |
3P-V |
PT3/8" |
65 |
60 |
40 |
Hex.21 |
25 |
13 |
PT3/8" |
4P-V |
PT1/2" |
134 |
124 |
44 |
Hex.29 |
28 |
15 |
PT1/2" |
6P-V |
PT3/4" |
231 |
213 |
52 |
Hex.35 |
36 |
17 |
PT3/4" |
|
|
|
Model |
Applications |
Weight(g) |
Dimensions(mm) |
Brass |
Stainless steel |
Lp |
￠D |
Hs |
A |
T |
2S-V |
PT1/4" |
145 |
134 |
58 |
28 |
Hex.19×￠22 |
13 |
PT1/4" |
3S-V |
PT3/8" |
227 |
209 |
65 |
35 |
Hex.21×￠25 |
13 |
PT3/8" |
4S-V |
PT1/2" |
466 |
431 |
72 |
45 |
Hex.29×￠35 |
15 |
PT1/2" |
6S-V |
PT3/4" |
773 |
714 |
88 |
55 |
Hex.35×￠41 |
17 |
PT3/4" |
|
|
|
|
|
