| LINE CUPLA |
■ Branching CUPLA allows simultaneous connection of three outlet hoses from a single air sourca.

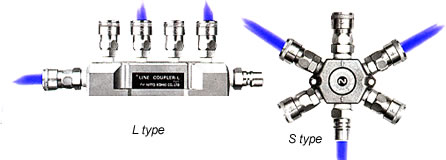

■ Available in two different types: Straight (L type) and Star (S type).
■ Interchangeable with Hi CUPLAs. |
| |
|
| |
 |
| Features |
- Up to three pneumatic tools can be simultaneously connected from a 1/2" pipe.
- Lightweight and compact in size.
- Easy installation and storage.
- Accessory pressure gauge and drain vavle ease piping control.
|
| Specifications |
| Material |
Body: Aluminum CUPLA: Steel (chrome-plated) |
| Size |
Inlet |
1/2" Hi CUPLA (400PM) |
Outlet |
1/4" Hi CUPLA ( 20SM) |
| Working pressure(kg/cm2) |
15 |
| Max,pressure((kg/cm2) |
20 |
Packing material/
operating temperature |
Rubber material |
Nitto symbol |
Operation temperature |
Remarks |
Nitrile butadiene rubber |
SG |
-20℃～+80℃ |
Standbard
material |
| Type of connection |
Inlet |
Rubber hose piping connected with 400SH |
Outlet |
1/4" and 3/8" rubber hose piping |
|
|
|
| Applications |
 |
Recommended fluid |
Applications |
Body: Aluminum
CUPLA: Steel |
Air |
Centralized piping
Manifold for pneumatic
equipment |
|
| |
| Flow Rate |
Branching out from a
single air source changes
the flow rate depending
on the number of hoses connected. When setting
up consider air consumption
of the pneumatic tools
and the number of hoses.
<Conditions>
Fluid type:Air
Temperature:
Room temperature
Pressure: 6kg/cm2 |
|
| Precaution |
- When using more than one outlet hose at the same time, refer to the flow rate table and select the proper pneumatic tools.
|
|
| |
|
|
| List of Line CUPLA Units |
|
|
Type of unit |
Size |
Body mounting |
Accessory |
Socket |
Plug |
Socket |
Plug |
Pressure gauge
(with plug) |
Drain valve (with plug) |
Type S unit |
S-20A |
1/4" |
20SM 4 pieces
40SM 1 piece |
400PM 1 piece |
400SH 1 piece |
20PH 3 pieces |
1 piece |
1 piece |
S-30A |
3/8" |
20SM 4 pieces
40SM 1 piece |
400PM 1 piece |
400SH 1 piece |
30PH 3 pieces |
1 piece |
1 piece |
Type L unit |
L-20A |
1/4" |
20SM 4 pieces
40SM 1 piece |
400PM 1 piece |
400SH 1 piece |
20PH 3 pieces |
1 piece |
1 piece |
L-30A |
3/8" |
20SM 4 pieces
40SM 1 piece |
400PM 1 piece |
400SH 1 piece |
30PH 3 pieces |
1 piece |
1 piece |
|
| |
|
|

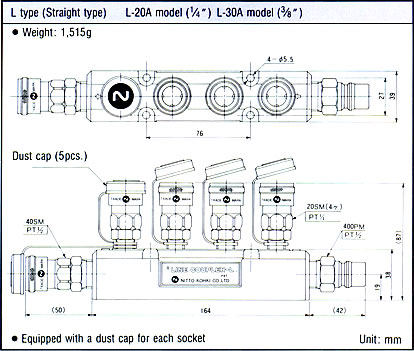

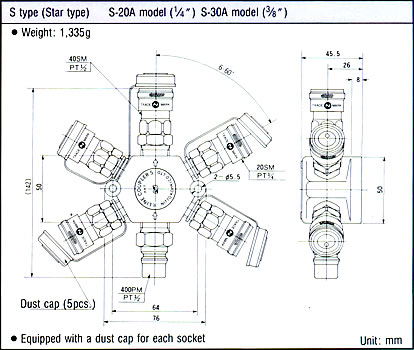

| Dimensions and Weight Tables |
|
|
|
|
|
|
|
|
|
