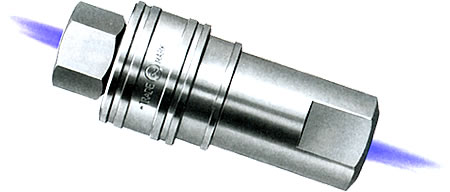

| SEMICON CUPLA SP TYPE |
■ Universal type with superb corrosion resistance.
■ Sizes galore to match various types of containers. |
| |
|
| |
 |
| Features |
- Bodies and valve springs made of stainless steel (SUS304).
Bodies are also pickled and passivated for improved corrosion resistance.
- A variety of choice of valve packing to match your fluid/application.
Flexible answer to semiconductor manufacturing processes.
- Choose from our abundant size variations to suit your application and flow volume.
|
| Applications |
Material |
Major applicable fluid |
Applications |
Stainless
steel |
High-purity chemicals
Pure water
Industrial gas
Air |
(1) Semiconductor production equipment
(2) Chemicals tanks,
(3) Equipment related to biotechnology.
(4) Pure water, and
(5) Physical, chemical, medical and foodstuff
equipment |
|
| |
| Specifications |
Body Material |
Stainless steel (SUS304), pickled and passivated |
Packing Material |
Scket O-ring:F.K.M. PERFLUOROELASTMER, EPDM, KALREZ |
Size |
1/8",1/4",3/8",1/2",3/4" |
Pressure |
Working |
2 kgf/cm2 (28.4 psig) |
Max. |
3 kgf/cm2 (42.6 psig) |
Operating temperature |
-10℃～+50℃ |
|
|
|
| Construction |
|
| |
| Minimum Sectional Area (mm2) |
1 SP type |
2 SP type |
3 SP type |
4 SP type |
6 SP type |
10 |
17 |
44 |
62 |
143 |
|
| |
| Interchangeability |
- It is so designed that the IN side cannot be connected to the OUT side.
|

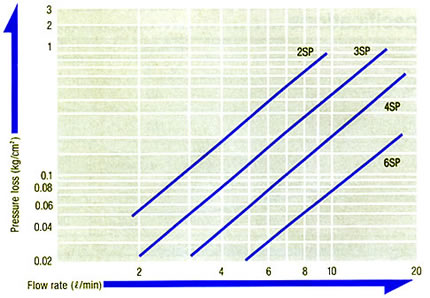

| Flow Rate/Pressure Loss |
| [Measurement Conditions] |
Fluid type: Water Temperature: 30℃±5℃ |
|
|
|
| Dimensions and Weight Tables |
|
|
| |
|
 |
 |
| |
|
|
 |
Model |
Application |
Weight(g) |

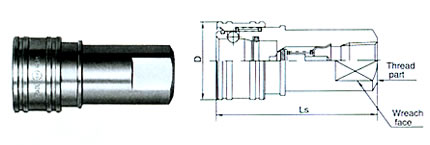

Dimensions (mm) |
Lp |
Wrench face |
Thread part (female) |
IN |
1P-SUS304-NPT1/8
1P-SUS304-19U
|
10-20 Lit. |
34 |
33 |
21 |
NPT1/8
19/32UNS |
OUT |
2P-SUS304-NPT1/4
2P-SUS304-19U |
10-20 Lit. |
41 |
36 |
21 |
NPT1/4
19/32UNS |
IN |
3P-SUS304-PT3/8 |
100-200 Lit. |
60 |
40 |
21 |
PT3/8 |
OUT |
4P-SUS304-PT1/2 |
100-200 Lit. |
115 |
44 |
29 |
PT1/2 |
OUT |
6P-SUS304-PT3/4 |
100-200 Lit. |
216 |
52 |
35 |
PT3/4 |
|
|
|
|
Model |
Application |
Weight(g) |
Dimensions (mm) |
Lp |
￠D |
Wrench face |
Thread part (female) |
IN |
1S-SUS304-NTP1/8
|
10-20 Lit. |
84 |
48 |
24 |
14 |
NPT1/8 |
OUT |
2S-SUS304-NTP1/4
|
10-20 Lit. |
138 |
58 |
28 |
19 |
NPT1/4
|
IN |
3S-SUS304-PT3/8 |
100-200 Lit. |
206 |
65 |
35 |
21 |
PT3/8 |
OUT |
4S-SUS304-PT1/2 |
100-200 Lit. |
419 |
72 |
45 |
29 |
PT1/2 |
OUT |
6S-SUS304-PT3/4 |
100-200 Lit. |
720 |
88 |
55 |
35 |
PT3/4 |
|
|
|
| |
