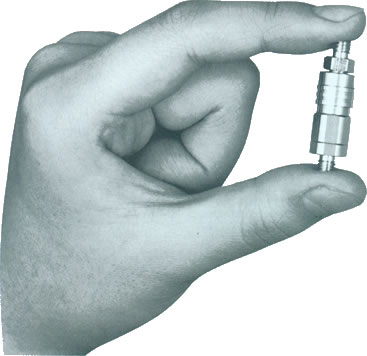

MICRO CUPLA
■ One-way automatic shut-off valve incorporated in the socket.
■ Lightweight with a compact outer diameter of only 9.5mm saves on space.
■ Many types for a wide variety of applications.

上一页 1 下一页 返回日东快速接头


日东接头 Nitto Cupla







Features
  • Socket's automatic shut-off valve prevents leakage upon connection.
  • Compact outer diameter of just 9.5mm saves space.
  • One-touch connection/disconnection facilitates operation.
  • Chrome-plated brass CUPLA is highly resistant to corrosion.
  • Wide variety provides best choice according to application.

Specifications

Material
Brass(chrome-plated)
Size
1/8"(Minimum diameter of 2.5mm)
Working pressure (kg/cm2)
10
Maximum pressure (kg/cm2)
15
Packing material/
operating temperature
Rubber material
Nitto symbol
Operating temperature
Remarks
Nitrile butadiene rubber
SG
-20℃~+80℃
Standard material
Viton
X-100
-20℃~+180℃
Order product

Applications
日东接头 Nitto Cupla
Recommended fluids
Applications
Brass
Air,water,oil
Pneumatic equipment, medical equipment
automatic controller, chemical equipment

Precaution
  • Make sure the packing material is compatible with the fluid and temperature.
  • Dust, foreign matter and flaws may cause leakage.

Interchangeability

  • Sockets and plug are interchangeable irrespective of the type.
Dimension and Weight Tables

日东接头 Nitto Cupla

日东接头 Nitto Cupla
Model
Application
Weight(g)
Dimensions (mm)
Lp
C
A
¢Hp
¢T
¢Bp
MC-04PH
for 4¢ hose
1.5
19
9.2
8
5.5
4.8
2.5

日东接头 Nitto Cupla
Model
Application
Weight(g)
Dimensions (mm)
Lp
C
A
Hp
¢T
¢Bp
MC-05PM
M5×0.8
2
17
9.2
4.5
Hex.7
M5×0.8
2.5

日东接头 Nitto Cupla
Model
Application
Weight(g)
Dimensions (mm)
Lp
C
A
Hp
¢T
¢Bp
MC-10PM
PT1/8"
8.7
26
12.5
9
Hex.11
PT1/8
2.5

日东接头 Nitto Cupla
Model
Application
Weight(g)
Dimensions (mm)
Lp
C
A
E
¢T
¢Bp
Hp
MC-04PHL
for 4¢ hose
9.4
22.5
17.5
8
18
4.8
2.5
Hex.7
