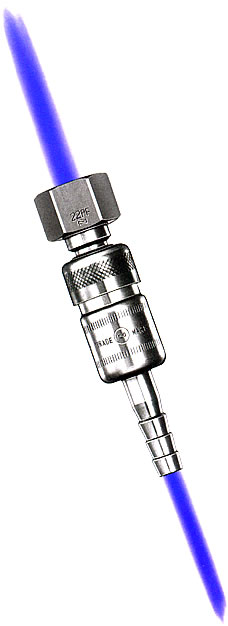

| MINI CUPLA |
■ Effortless connection for oxygen/acetylene welders.
■ Double safety seal prevents gas leaks at connection/disconnection.
■ All connections from fuel tank to torch are easy. |
| |
|
| |
|
| |
| |
| Features |
- Lightweight, high-capacity flow.
- Minimum pressure loss.
- Wide variety of models for a variety of applications
|
| |

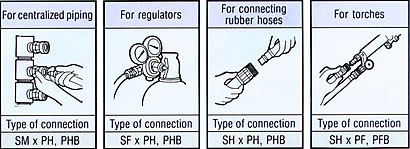

| Applications |
 |
Recommended fluid |
Applications |
| Brass |
Oxygen
Air
Acetylene |
Torch
Gas welder
Spray gun |
|
|
|
| How To Use |
- Use proper Mini CUPLA in accordance with application.
|
|
| |
| Specifications |
Material |
Brass |
Size |
1/4",5/16",3/8" |
Working pressure(kgf/cm2) |
7 |
Maximum pressure(kgf/cm2) |
10 |
Packing material and
operating temperature |
Rubber material |
Nitto symbol |
Operation temperature |
Remarks |
Nitrile butadiene rubber |
SG |
-20℃～+80℃ |
Standbard
material |
|
| |
| Structure |
| when connected |
| The plug and socket engage securely, fully opening built-in valve automatically |
| to assure maximum fluid flow. A double safety seal completely prevents any leakage |
|
| |
| Precaution |
- Do not connect any of the sockes or plugs used for oxygen to those used for acetylene.
- Do not use impact/vibrating equipment with the CUPLA.
- Keep the CUPLA free from dust.
- Check for any leaks before using.
|
| Interchangeability |
- No oxygen sockets or plugs are interchangeable with those for acetylene
|

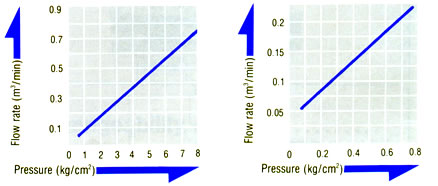

| Flow Rate/Pressure Loss |
| [Measuring conditions] Fluid: Air Temperature: Room temperature |
| For oxygen For ACETYLENE |
|
|
|
|
|
