ROTARY LINE CUPLA
■ Branching CUPLA with an ideal rotary mechanism allows simultaneous connection of three outlet hoses from a single air source.

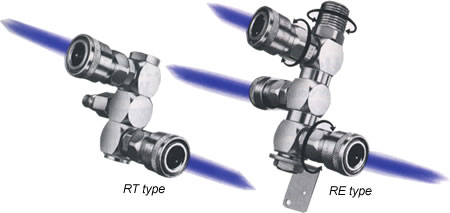

■ Available in two different types: RT type (2-branches) and RE type (3-branches), both of which can be used with HI-CUPLAs.

上一页 14 下一页 返回日东快速接头

日东接头 Nitto Cupla
Features
  • Branching CUPLA with an ideal rotary mechanism allows simultaneous connection of three outlet hoses from a single air source.
  • Air inlet socket moves freely in every direction 360°. A swivel mechanism also permits the hoses to swivel freely.
  • Available in two different types: RT type (2-branches) and RE type (3-branches).
  • Operators can use these CUPLAs CUPLAs as an optimum branch CUPLA in easy-to-handle areas and in a wide variety of fields.
Specifications
Material
Body: Brass (chrome-plated).
CUPLA: Steel (chorme-plated)
Type
RT type (2-branches)
RE type (3-branches)
Size
Inlet
1/4" Hi- CUPLA
Inlet
PT 1/2" male screw
Outlet
Two sockets (Model 20)
Outlet
Three sockets (Model 20)
Working pressure(kg/cm2)
15
Max,pressure(kg/cm2)
20
Packing material/
operating temperature
Rubber material
Nitto
symbol
Operation temperature
Remarks
Nitrile butadiene rubber
SG
-20℃~+80℃
Standbard
material

Applications
日东接头 Nitto Cupla
Recommended fluid
Applications
Polyacetal resin
Air
  • Branch piping for compressors
  • Manifold of air piping
  • Btanch piping for hose reel
  •
    Precaution
    • When using more than one hose at the same time, refer to the flow rate table and select the proper pneumatic tools.

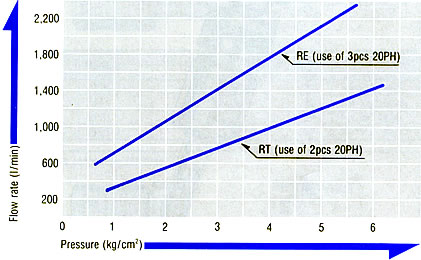

    Flow Rate
    • Conditions-Fluid type: Air    Temperature: Room temperature

    日东接头 Nitto Cupla

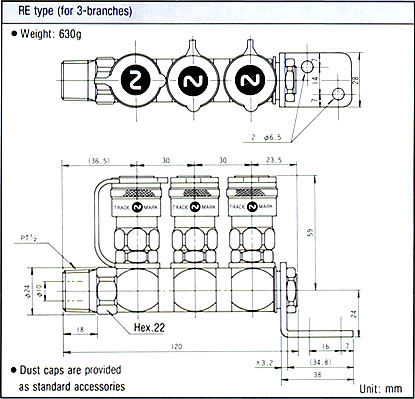

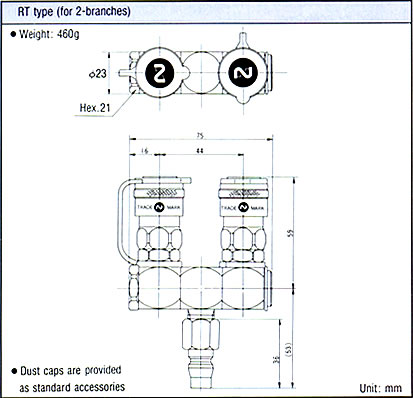

    Dimensions and Weight Tables
    日东接头 Nitto Cupla

    日东接头 Nitto Cupla
