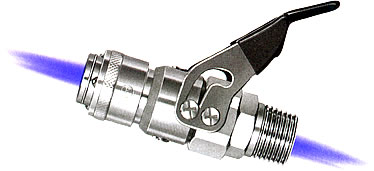

PURGE NUT-CUPLA
■ One touch connection! Eliminates unpleasant shock and noise on disconnection.
■ Interchangeable with Hi-CUPLAs.

上一页 11 下一页 返回日东快速接头

日东接头 Nitto Cupla

Features

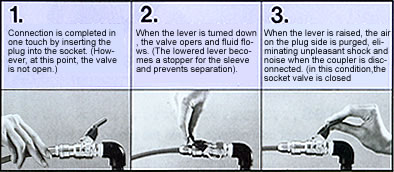

  • Just push the plug in for one touch connection. It's a single handed operation.
  • The exclusive lever action allows the vavle to be opened and closed at will with the CUPLA connected.
  • Air is removed from the piping on the plug side, eliminating unpleasant shock and noise on disconnection.
  • Safety design prevents the lever operated valve from opening when the plug is not connected.
  • The possibility of connecting to the Hi-CUPLA plug gives excellent universal compatibility.
Applications
日东接头 Nitto Cupla
Major applicable fluid
Applications
Steel
Air
Air piping

Specifications
Body material
Brass(Chrome plated)
Sizes
  1/4"(Type 20),3/8"(Type 30),2/1"(Type 40),
  1/2"(Type 400),3/4(Type 600)
Working pressure(kgf/cm2)
10
Max,pressure(kgf/cm2)
15
Packing material
Rybber material
Nitto code
Operating temperature
Nitrile rubber
SG
-20°~+80℃

Construction
日东接头 Nitto Cupla




Minimum Sectional Area (mm2)
PV-20SM
PV-30SM
PV-40SM
PV-400SM
PV-600SM
38
38
38
120
120

Interchangeability
  • Hi-CUPLA,Nut CUPLA and Plastic Hi-CUPLA plugs can be connected.

Use Precautions
  • Please note that if the lever is turned down when the sleeve is forward,
    the valve is open and fluid will flow.

How To Hose
日东接头 Nitto Cupla

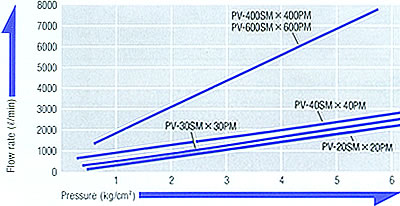

Flow Rate
[Measurement conditions] Fluid: air     Temperature: ambient
日东接头 Nitto Cupla

Dimension and Weight Tables
Model
Application
Weight(gf)
Dimensions(mm)
Ls
¢D
E1
E2
H1
¢C
A
T
¢B
PV-20SM
PT1/4"
225
79
26.5
47
70
Hex.22
25.4
13
PT1/4"
7
PV-30SM
PT3/8"
229
80
26.5
47
70
Hex.22
25.4
14
PT3/8"
10
PV-40SM
PT1/2"
235
82
26.5
47
70
Hex.22
25.4
16
PT1/2"
14
PV-400SM
PT1/2"
411
94
35
58
80
Hex.22
34.6
16
PT3/8"
13
PV-600SM
PT3/4"
424
97
35
58
80
Hex.22
34.6
19
PT1/4"
18
