ROTARY NUT-CUPLA

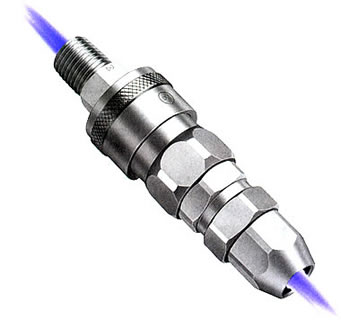

■ Even with the CUPLA connected, the rotary action of the socket completely solves hose twisting.
■ Interchangeable with Hi CUPLAs.

上一页 10 下一页 返回日东快速接头

日东接头 Nitto Cupla

Features
  • Rotating socket configuartion solves the problem of hose twisting.
  • To attach the hose, just push it onto the nipple and tighten the nut.
  • Plugs of Hi-CUPLA Models 20,30 and 40 can be fitted for excellent
    compatibility.

Applications
日东接头 Nitto Cupla
Major applicable fluid
Applications
Steel
Air
  • Urethane hose
  • Pneumatic tools
  • Air piping
  •
    Specifications
    Body material
    Steel (chrome plated)
    Sizes
    for 10.0 mm OD urethane hose (6.5 mm ID)
    for 12.5 mm OD urethane hose (8.5 mm ID)
    Working pressure (kgf/cm2)
    15
    Max. pressure (kgf/cm2)
    20
    Packing material
    Rubber material
    Nitto code
    Operation temperature
    Nitrile rubber
    SG
    -20℃~+80℃

    Construction
    日东接头 Nitto Cupla

    Minimum Sectional Area (mm2)
    20SNR
    30SNR
    22
    32

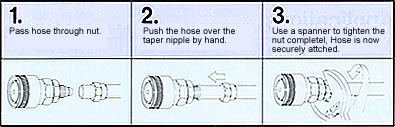

    How To Connect Urethane Hose
    日东接头 Nitto Cupla

    Interchangeability
    • Hi-CUPLA, Nut CUPLA and Plastic Hi-CUPLA plugs can be connected.

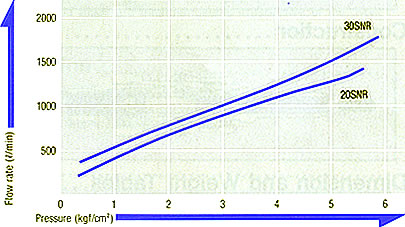

    Flow Rate
    [Measurement conditions] Fluid: air     temperature: ambient
    日东接头 Nitto Cupla

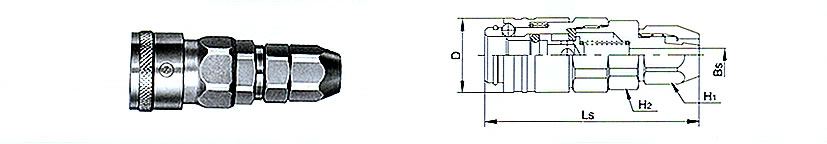

    Dimension and Weight Tables
    日东接头 Nitto Cupla
    Model
    Application
    Weight(g)
    Dimensions (mm)
    Ls
    ¢D
    H1
    H2
    ¢B
    20SNR
    for urethane hose 10mmOD×6.5MMID
    130
    68.5
    26.5
    Hex.17
    Hex.19
    5.3
    30SNR
    for urethane hose 12.5mmOD-8.5MMID
    137
    71.0
    26.5
    Hex.19
    Hex.19
    7.5
