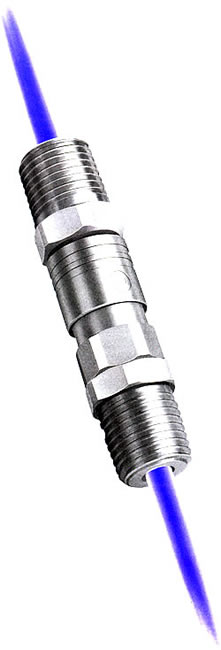

| SMALL CUPLA |
■ Miniaturized, light weight, one-touch CUPLA.
■ Highly appraised as the harbinger of miniaturization and modularization at the center of modern industry. |
| |
|
| |
|
| |
| |
| Feature |
- Compact,14 mm external, valves installed in sockets.
Suitable for applications of progressive miniaturization
and modularization.
- Improved operation. Constructed for one-touch connection
by simply pushing the plug into the socket.
- Chrome plated brass body for anti-corrosion. Gives long
term, stable functioning.
- Widely configured with male and female thread connections,
hose connectors, manifolds, to suit wide variety of piping
applications for pneumatic appliances, physical and chemical
appliances, medical devices.
|
|
|
|
| Applications |
Principal |
Applications |
Air
Water
Oil |
Piping for pneumatic appliances
Piping for physical and chemical appliances
Piping for metallic mold cooling water |
|
| |
| |
| Specifications |
| Body material |
Brass (chrome plated) |
| Sizes |
1/8",1/4" |
| Working pressure |
7 kgf/cm2 |
| Max pressure |
10 kgf/cm2 |
| Packing material |
Rubber material |
Nitto code |
Operating temperature |
Nitrile rubber |
SG |
-20℃～+60℃ |
|
| |
| |
Construction |
|
| |
| |
| Interchangeability |
| Sockets and plugs are interchangeable irrespective of types. |
| |
| |

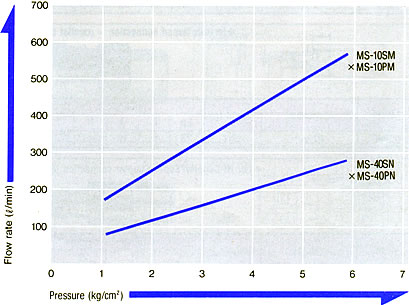

| Flow Rate |
| {Measurement Conditions} Fluid type: Air Temperature: normal temperature |
| |
| |
|
|
|
|
|
|
