| Minimum Sectional Area (mm2) |
Inflow Volume of Air upon Connection (cc) |
2HS-RP+2HP |
3HS-RP+3HP |
4HS-RP+4HP |
6HS-RP+6HP |
8HS-RP+8HP |
17 |
30 |
77 |
77 |
203 |
|
2HS-RP |
3HS-RP |
4HS-RP |
6HS-RP |
8HS-RP |
0.64 |
1.84 |
3.47 |
3.47 |
12.4 |
|
|
| |

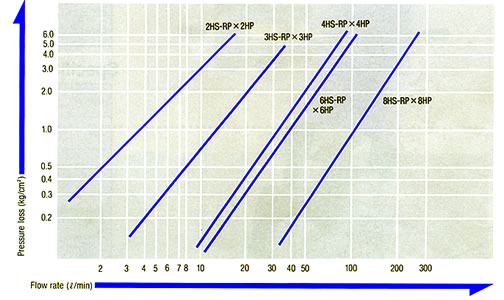

| Flow Rate/Pressure Loss |
| [Measuring conditions] |
| Fluid : |
Hydraulic fluid #46 |
| Temperature: |
30℃±5℃ |
| Viscosity: |
46centistokes |
| Specific gravity: |
0.8727×10-3kg/cm3 |
|
|
|

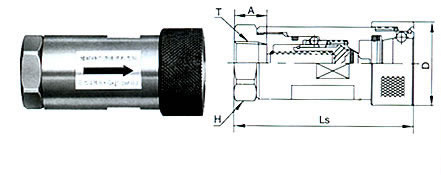

| Dimension and Weight Tables |
| |
|
 |
 |
| |
|
 |
Conventional plugs, provided production lot number is 11 or greater, can be used with Super HSP sockets.
Production Lot Number indication |
| A two-dight production lot number is stampad on the spanner flat (1st digit = last digit of year, 2nd digit = month). October, Example :11 signifies 1991, January. |
|
|
|
Model |
Application |
Weight(g) |
Dimensions (mm) |
Ls |
￠D |
H |
A |
T |
2HS-RP |
PT1/4 |
160 |
57.5 |
27.5 |
Hex.21 |
13 |
PT1/4 |
3HS-RP |
PT3/8 |
275 |
72.0 |
33 |
Hex.27 |
13 |
PT3/8 |
4HS-RP |
PT1/2 |
570 |
88.5 |
43 |
Hex.35 |
16 |
PT1/2 |
6HS-RP |
PT3/4 |
550 |
90.5 |
43 |
Hex.35 |
18 |
PT3/4 |
8HS-RP |
PT1 |
1,230 |
114.0 |
58 |
Hex.46 |
20 |
PT1 |
|
|
|
|
|
