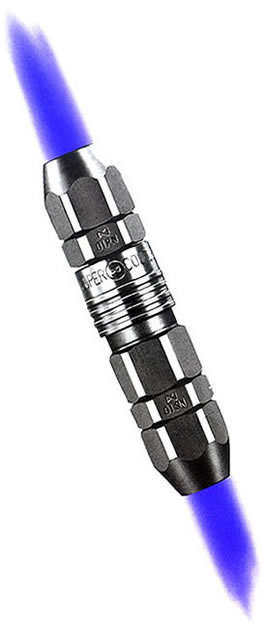

SUPER CUPLA
■ One-way automatic shut-off valve in the socket.
■ Lightweight, compact, most suitable for air hoses.
■ Ideal for small tools or equipment.
■ Many types for a wide variety of applications.

上一页 3 下一页 返回日东快速接头

日东接头 Nitto Cupla

Fratures
  • Commpact and lightweight
  • One-touch connection/disconnection facilitates operation.
  • Wide variety provides best choice to application.
  • Can be connected to various hose sizes.

Applications
日东接头 Nitto Cupla
Recommended fluids
Applications
Steel
Air
 Small pneumatic tools
 Urethane hoses
 Pneumatic equipment piping
Aluminum

Structure
  • When disconnected
  •
    The socket valve
    provides an instant
    seal, automatically
    shutting off fluid flow
    to prevent leakage.
    日东接头 Nitto Cupla

  • When connected
  •
    The plug and socket
    engage securely, fully
    opening valve auto-
    matically to assure
    maximum fluid flow.
    日东接头 Nitto Cupla


    Specificationes
    Material
    Steel (chrome-plated), aluminum
    Size
    1/8",1/4"
    Working pressure(kg/cm2)
    10
    Maximum pressure(kg/cm2)
    15
    Packing material and
    operating temperature
    Rubber material
    Nitto symbol
    Operating temperature
    Remarks
    Nitrile butadiene
    rubber
    SG
    -20℃~+80℃
    Standard

    Interchangeability
  • Sockets and plugs are interchangeable irrespective of the type.
  •

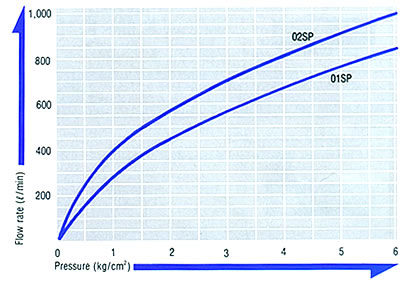

    Flow Rate


  • Conditions-Fluid: Air   Temperature: Room temperature
  •
    日东接头 Nitto Cupla
