  Note on Usage:
Please consult us on the die-cast specifications when using
a large volume or pulsative fluid flow with die-casting machines.atc.
Structure
  • When disconnected
    		•
  • When connected
    		•
    The socket and plug valves seal instantly, automatically shutting off fluid flow to prevent leakage.
    日东接头 Nitto Cupla
    		  The socket and plug valves push together, opening to permit free flow of fluid through CUPLA.An O-ring in the socket seals the plug surface preventing any leakage.
    日东接头 Nitto Cupla

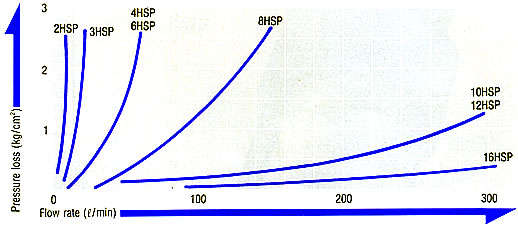

    Flow Rate/Pressure Loss
    [Measuring conditions]
    Fluid type: Hydraulic fluid #52
    Temperature: 30℃±5℃
    Kinetic viscosity: 50 (centi-Stokes)
    Specific gravity: 0.8727×10-3kg/cm3
    日东接头 Nitto Cupla

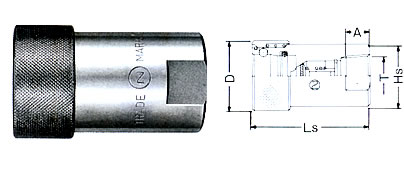

    Dimensions and Weight Tables

    日东接头 Nitto Cupla   日东接头 Nitto Cupla

    日东接头 Nitto Cupla
    Model
    Applications
    Weight(g)
    Dimensions(mm)
    Lp
    C
    Hp
    A
    T
    2HP
    PT1/4"
    44
    32
    17.5
    2hex.19×22￠
    12
    PT1/4"
    3HP
    PT3/8"
    72
    38
    22.5
    2hex.23×25￠
    13
    PT3/8"
    4HP
    PT1/2"
    138
    44
    27.5
    2hex.29×33￠
    16
    PT1/2"
    6HP
    PT3/4"
    145
    50
    27.5
    2hex.32×35￠
    18
    PT3/4"
    8HP
    PT1"
    332
    61
    36
    2hex.41×47￠
    23
    PT1"
    10HP
    PT1/4"
    894
    80
    58
    2hex.58×64￠
    24
    PT5/4"
    12HP
    PT1/2"
    956
    80
    58
    2hex.58×64￠
    24
    PT3/2"
    16HP
    PT2"
    1,513
    115
    83
    2hex.90×100￠
    32
    PT2"

    日东接头 Nitto Cupla
    Model
    Applications
    Weight(g)
    Dimensions(mm)
    Ls
    ￠D
    Hs
    A
    T
    2HS
    PT1/4"
    136
    49
    27.5
    2hex.19×23.9￠
    12
    PT1/4"
    3HS
    PT3/8"
    220
    60
    33
    2hex.23×28.6￠
    13
    PT3/8"
    4HS
    PT1/2"
    482
    72
    43
    2hex.35×38.5￠
    16
    PT1/2"
    6HS
    PT3/4"
    452
    72
    43
    2hex.35×38.5￠
    18
    PT3/4"
    8HS
    PT1"
    1,020
    93
    58
    2hex.46×52.2￠
    20
    PT1"
    10HS
    PT5/4"
    2,344
    138
    87
    2hex.58×64￠
    24
    PT5/4"
    12HS
    PT3/2"
    1,597
    138
    87
    2hex.58×64￠
    24
    PT3/2"
    16HS
    PT2"
    3,699
    198
    123
    2hex.80×90￠
    32
    PT2"
