| SP CUPLA |

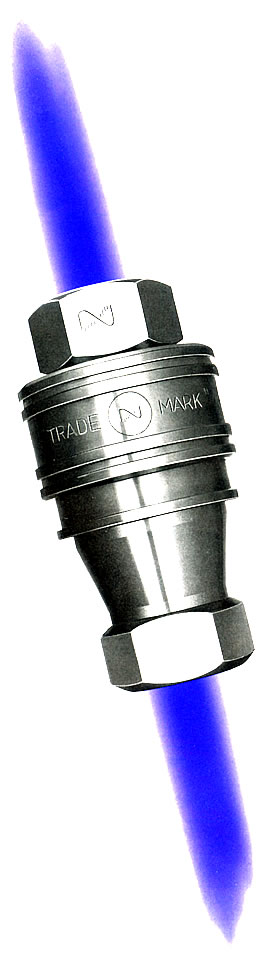

■ Two-way shut-off with an automatic shut-off valve incorporated into both the socket and the plug.
■ Automatic shut-off valve in socket and plug provide an instant, perfect seal when CUPLA is disconnected.
■ Variety of body materials. Packing can be selected according to fluid type. |
| |
|
| |
|
|
| Features |
- Valves in both the plug and socket prevent fluid leakage upon disconnection.
- Highly accurate machining technology creates an extremely tight seal.
- Designed for a wide variety of applications.
|
| Applications |
 |
Recommended fluid |
Applications |
| Brass |
Gasoline、fuel oil、
kerosene 、water、air |
Water piping, sea water
Hydraulic equipment, pining
Steam piping
Chemicals, chemical plants
High-pressure gas (N2,Freon,etc) |
| Stainless steel |
Acid,alkali,salty water |
| Steel |
Operating oil |
|
| |
| Specifications |
Material |
Brass |
Stainless Steel (Blackened) |
Size |
1/8".1/4",
3/8" |
1/2",3/4",
1" |
1 1/4",
1 1/2 |
2" |
1/8",1/4",
3/8" |
1/2",3/4",
1" |
1 1/4",
1 1/2 |
2" |
Working pressure(kgf/cm2) |
50 |
30 |
20 |
15 |
75 |
45 |
30 |
20 |
Maximum pressure(kgf/cm2) |
75 |
45 |
30 |
23 |
100 |
65 |
40 |
30 |
Packing material and
operating temperature |
Rubber material |
Nitto symbol |
Operation
temperature |
Remarks |
Nitrile butadiene
rubber |
SG |
-20℃～+80℃ |
Standbard
material |
Viton |
X-100 |
-20℃～+180℃ |
Optional |
Neoprene |
X-306 |
-20℃～+80℃ |
Ethylene
propylene |
E.P.T. |
-40℃～+150℃ |
| Type of connection |
Female thread for both socket and plug |
|
| |
| Structure |
| When disconnected |
| The socket and plug valves seal instantly, automatically shutting off fluid flow to prevent leakage. |
|
| When When connected |
| The socket and plug valves push together, opening to permit free flow of fluid through CUPLA.An O-ring in the socket seals the plug surface preventing any leakage. |
|
| |
| Interchangeability |
- Different size sockets and plugs are not interchangeable.
|
|
|
|
|
|
