| Interchangeability |
- No oxygen sockets or plugs are interchangeable with those for acetylene.
- The oxygen plugs and sockets are interchangeable irrespective of the type of connection.
- The acetylene plugs and sockets are interchangeable irrespective of the type connection.
|
|
|

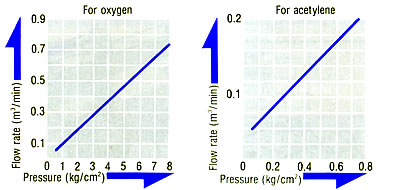

| Flow Rate |
| [Measuring conditions] Fluid: Air Temperature: Room temperature |
|
|
| Dimensions and Weight Tables |
|
|
| |
|
|
 |
 |
| |
|
|
| |
Model |
Dimensions(mm) |
Weigt
(g)
|
Applications |
Lp |
C |
A |
￠HP |
￠T |
￠J |
￠BP |
For oxygen |
S22PH |
58 |
24 |
28 |
11 |
6.7 |
9.5 |
4.5 |
17 |
For 1/4",5/16" hose |
For acetylene |
S33PH |
59.5 |
25.5 |
30 |
14 |
7.5 |
11 |
6 |
22 |
For 5/16",3/8" hose |
|
|
|
| |
Model |
Dimensions(mm) |
Weight
(g) |
Applications |
Ls |
￠D |
A |
￠T |
￠J |
￠BP |
For oxygen |
S22SH |
64.5 |
19.5 |
30 |
6.7 |
9.5 |
4.5 |
50 |
For 1/4",5/16" hose |
For acetylene |
S33SH |
68.5 |
22 |
30 |
7.5 |
11 |
6 |
73 |
For 5/16",3/8" hose |
|
| |
|
|
|
| |
Model |
Dimensions(mm) |
Weigt
(g)
|
Applications |
Lp |
C |
HP |
T |
￠BP |
For oxygen |
S22PF |
43.5 |
24 |
Hex.19 |
M16×15 |
5 |
35 |
For oxygen torch |
For acetylene |
S33PF |
44.5 |
25.5 |
Hex.19 |
M16×
15Left |
7.5 |
32 |
For gas torch |
|
|
|
| |
Model |
Dimensions(mm) |
Weight
(g) |
Applications |
Ls |
￠D |
T |
Hs |
For oxygen |
S22SF |
52.5 |
19.5 |
M16×15 |
Hex.19 |
74 |
For oxygen |
For acetylene |
S33SF |
58 |
22 |
M16×
15 Left |
Hex.19 |
97 |
For acetylene |
|
| |
|
|
| |
|
|
| |
Model |
Dimensions(mm) |
Weight
(g) |
Applications |
Ls |
￠D |
Hs |
T |
For oxygen |
S22SM |
48.5 |
19.5 |
Hex.18 |
PT1/4" |
58 |
PT1/4" |
For acetylene |
S33SM |
52.6 |
22 |
Hex.21 |
PT3/8" |
85 |
PT3/8" |
|
